Female NPT x Male NPT Brass Ball Valve
ITEM:BVSSMN
lForged brass body
lThread conform to ANSI B1.20.1
l600PSI max working pressure
l-20°F~300°F working temperature
lBlow out proof stem design
lSize:1/4"~2"
BVSSMN025: 1/4" x 1/4";BVSSMN038: 3/8" x 3/8";
BVSSMN050: 1/2" x 1/2";BVSSMN075: 3/4" x 3/4";
BVSSMN0100: 1" x 1";BVSSMN0125: 1-1/4" x 1-1/4";
BVSSMN0150: 1-1/2" x 1-1/2";BVSSMN200: 2" x 2";

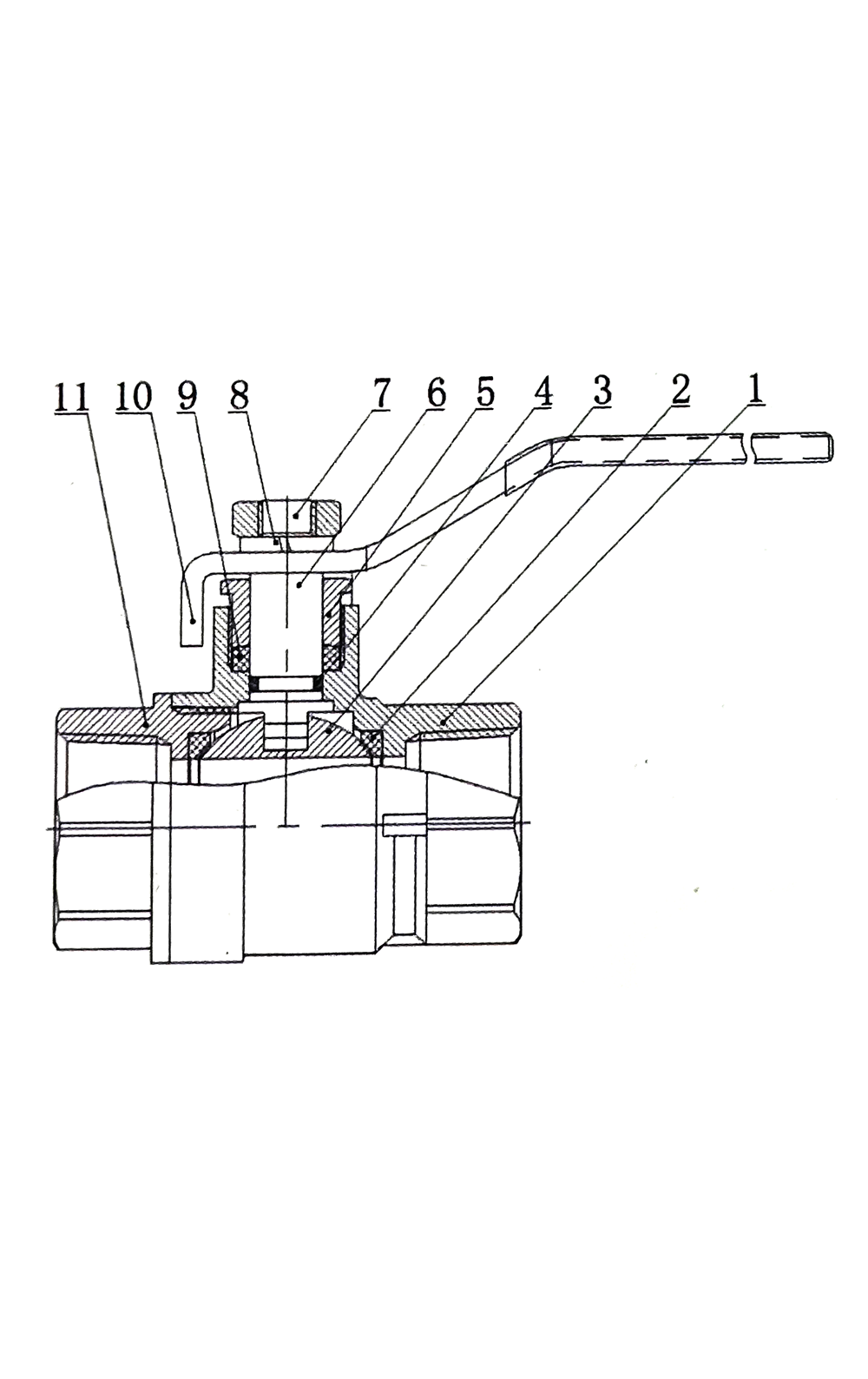

Product Overview
| No. | Name | Material |
1 | Body | Lead Free Brass |
| 2 | Seat | PTFE |
| 3 | Ball | Stainless Steel |
| 4 | O-ring | NBR |
| 5 | Packing Nut | Brass |
| 6 | Stem | Brass /Stainless Steel |
| 7 | Handle Nut | Plated Steel |
| 8 | Lock Washer | Plated Steel |
| 9 | Packing | PTFE |
| 10 | Handle | Plated Steel With Viny Grip |
| 11 | Cap | Lead Free Brass |
