Pex x Pex Brass Ball Valve
ITEM:BVLF-PP
lForged brass body
lPex end conform to ASTM F1807
l600PSI max working pressure
l-20°F~300°F working temperature
lBlow out proof stem design
lSize:1/2"~2"
BVLF-PP050: 1/2" x 1/2";BVLF-PP075: 3/4" x 3/4";
BVLF-PP0100: 1" x 1";BVLF-PP0125: 1-1/4" x 1-1/4";
BVLF-PP0150: 1-1/2" x 1-1/2";BVLF-PP200: 2" x 2";

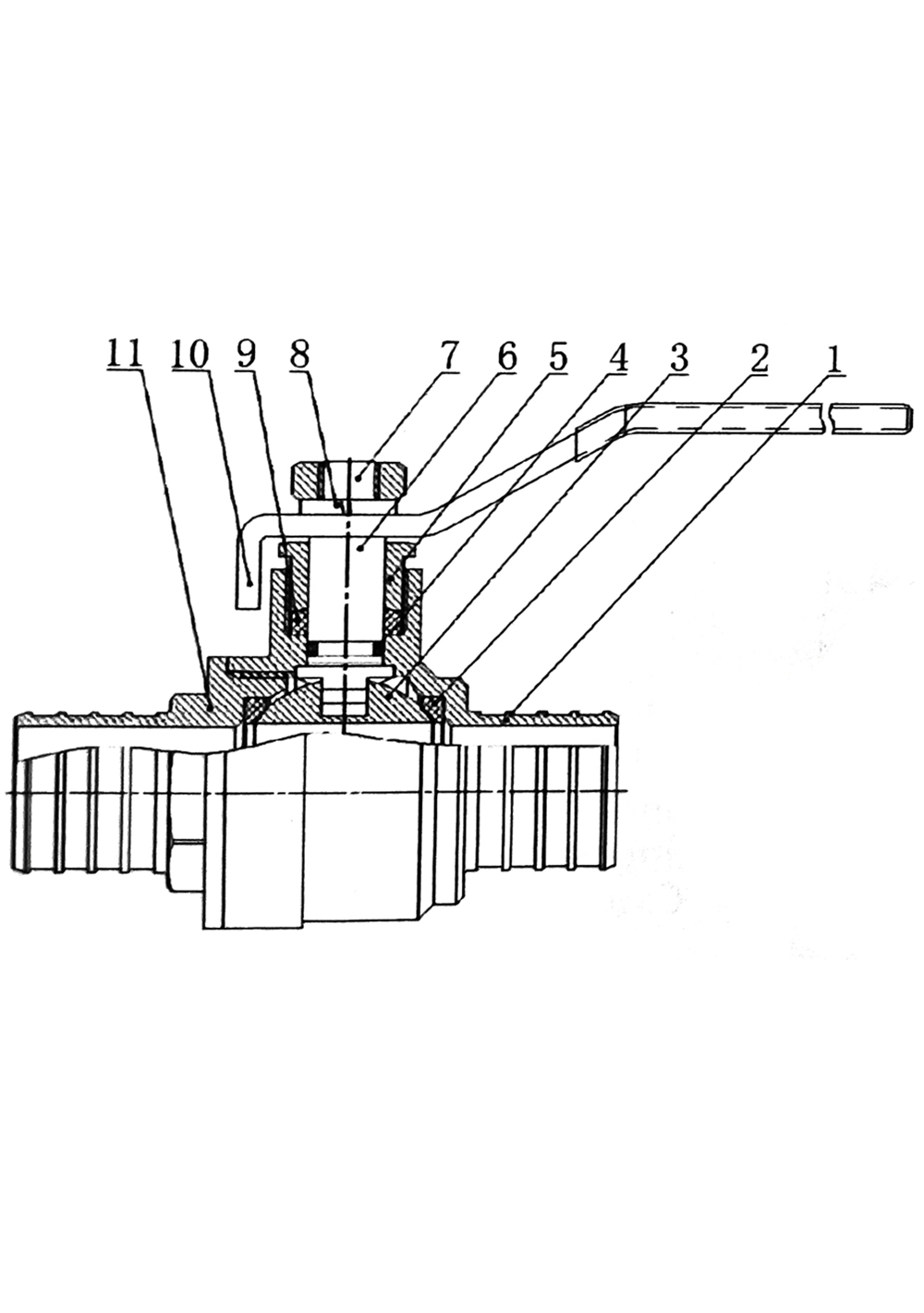

Product Overview
| No. | Name | Material |
1 | Body | Lead Free Brass |
| 2 | Seat | PTFE |
| 3 | Ball | Stainless Steel |
| 4 | O-ring | EPDM |
| 5 | Packing Nut | Brass |
| 6 | Stem | Brass |
| 7 | Handle Nut | Plated Steel |
| 8 | Lock Washer | Plated Steel |
| 9 | Packing | PTFE |
| 10 | Handle | Plated Steel With Vinyl Grip |
| 11 | Cap | Lead Free Brass |
