Air Hose
+
Female NPT x NH Brass Ball Valve
ITEM:BVLF-5220
lForged brass body
lNPT thread conform to ANSI B1.20.1
lHose thread conform to ANSI B1.20.7
lSize:1/2" ; 3/4"
BVLF-52201: 1/2" x 1/2";BVLF52202: 3/4" x 3/4";

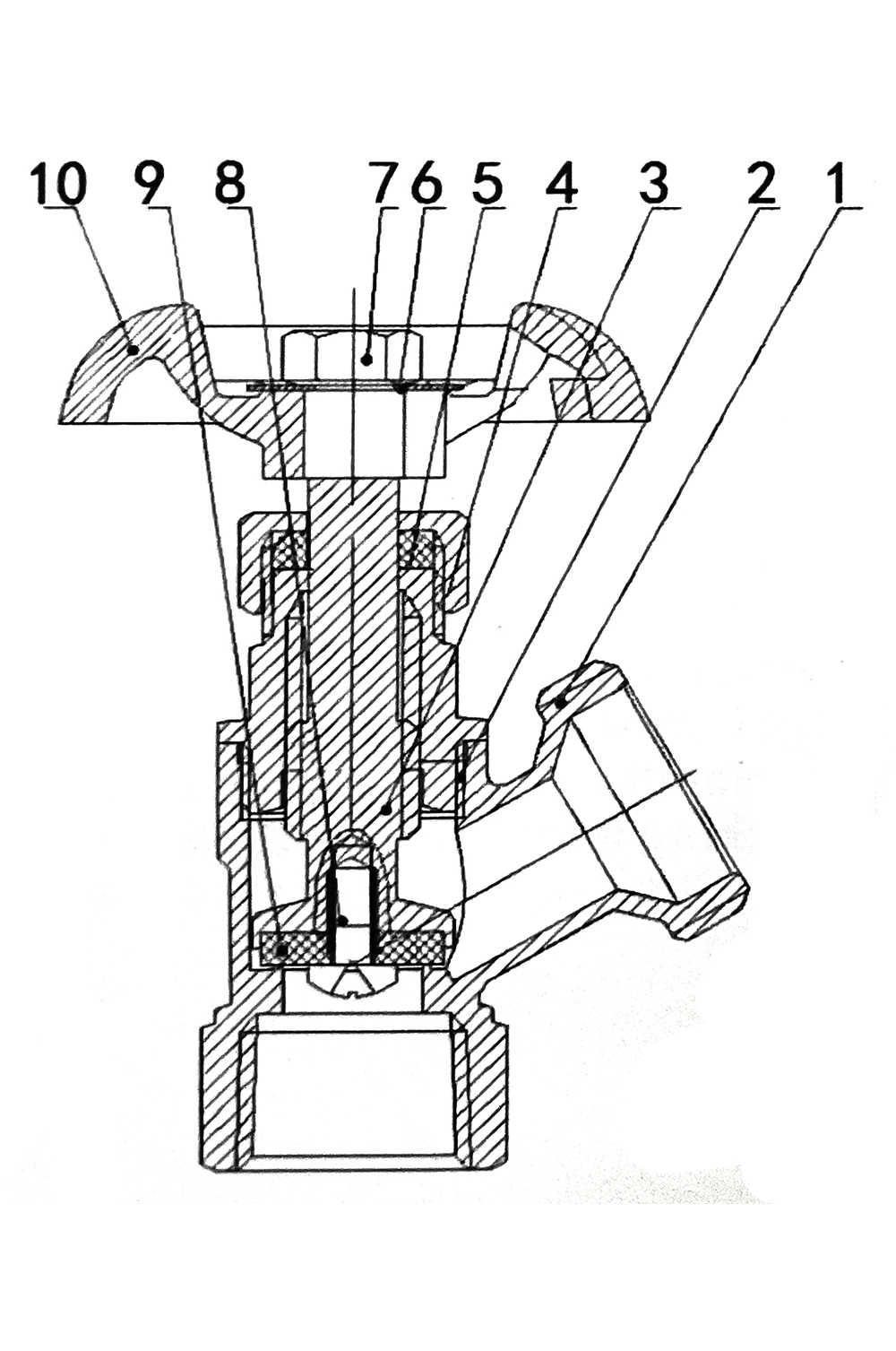

Product Overview
| No. | Name | Material |
1 | Body | Lead Free Brass |
| 2 | Nut | Lead Free Brass |
| 3 | Stem | Lead Free Brass |
| 4 | Nut | Brass |
| 5 | Packing | PTFE |
| 6 | Nameplate | AL-Alloy |
| 7 | Handle Nut | Stainless Steel |
| 8 | Screw | Brass |
| 9 | Sealing Gasket | EPDM |
| 10 | Handle | Cast Iron |
