Tankless Water Heater Valves
ITEM:TWHVN
lSet of 2 heavy duty forged brass ball valves
lFIP union with Press ,Prepex,Pex ,SWT or FIP connection
lNPT thread end conform to ASTM B16.22
l125PSI max working pressure
l250°F max working temperature
lSize: 3/4" ; 1"
TWHVN075:3/4"NPT x 3/4"NH ;
TWHVN100:1"NPT x 3/4"NH

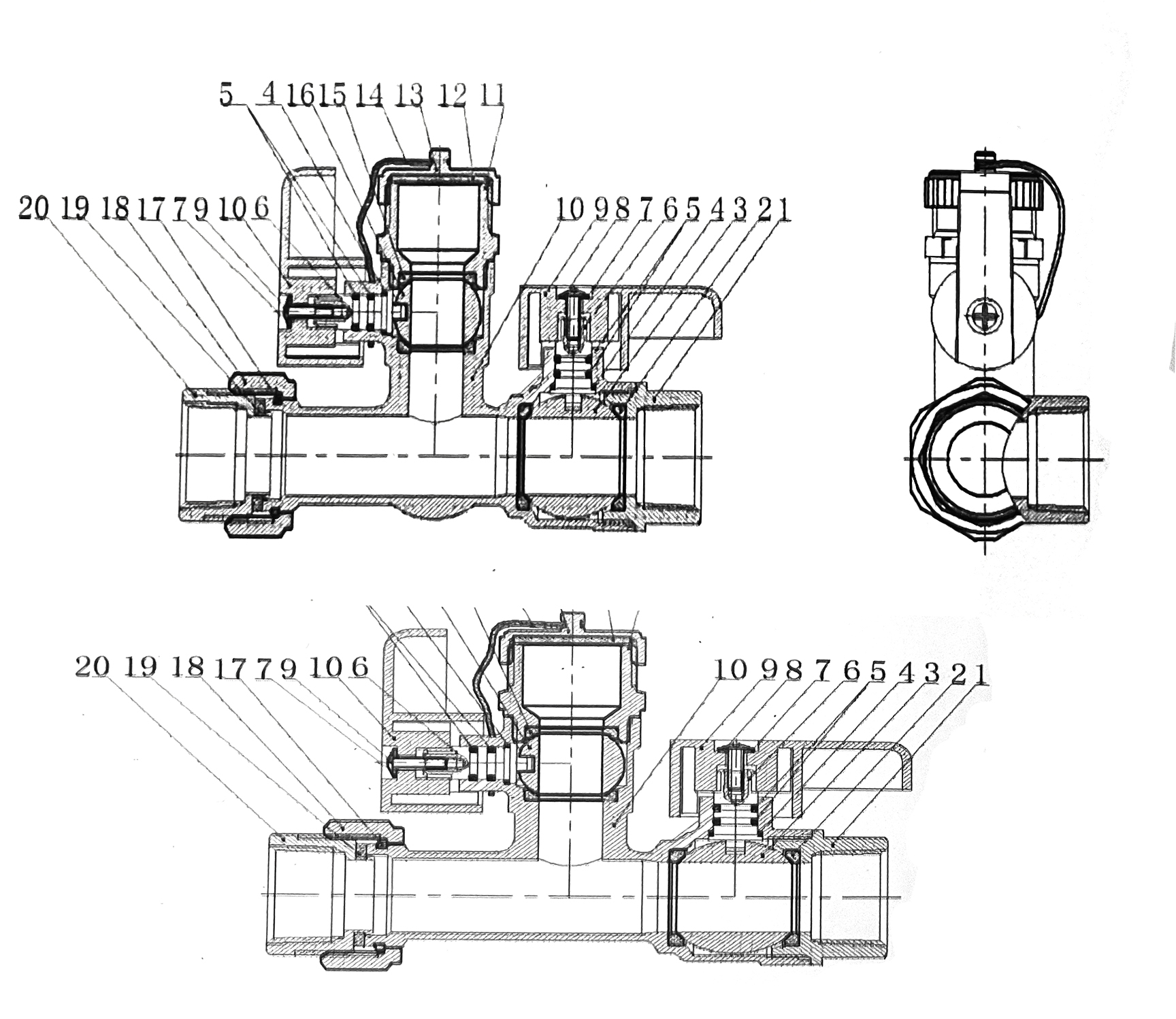

Product Overview
| No. | Name | Material | No. | Name | Material |
1 | Cap | Lead Free Brass | 11 | Cap | Lead Free Brass |
| 2 | Seat | PTFE | 12 | Rubber Washer | EPDM |
| 3 | Ball | SS304 | 13 | Cap Nut | Brass |
| 4 | Gasket | PTFE | 14 | Chain | PVC |
| 5 | O-ring | EPDM | 15 | Seat | PTFE |
| 6 | Stem | Brass | 16 | Ball | SS304 |
| 7 | Spring Washer | Plated Steel | 17 | Snap Spring | SS304 |
| 8 | Screw | Plated Steel | 18 | Cap Nut | MBrass |
| 9 | Handle | Al-Alloy | 19 | Rubber Washer | EPDM |
| 10 | Body | Lead Free Brass | 20 | Cap | Lead Free Brass |
