UPVC Water Pressure Reducing Ball Valve
ITEM:PBV-02
lUPVC material
l1/2"~2"
lCNS/JIS/DIN/BS/ANSI/NPT/BSPT Standard
lMany colors available for choice
lWater/weak acid/weak base working media
Product Overview

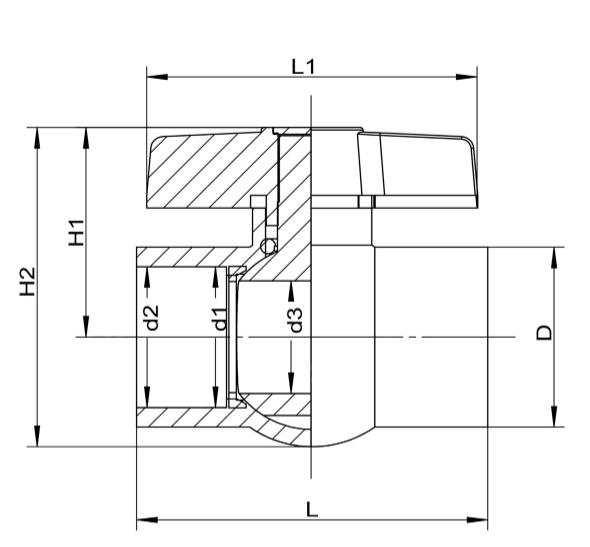

| Item | Size | d3 | D | L | L1 | H2 |
PBV-02-12 | 1/2" | 15 | 30.2 | 69.4 | 69.1 | 60.2 |
| PBV-02-34 | 3/4" | 20 | 36.3 | 83.3 | 76.2 | 72.8 |
| PBV-02-1 | 1" | 25 | 43.5 | 97.2 | 89.7 | 84.6 |
| PBV-02-114 | 1-1/4" | 32 | 52.0 | 106.6 | 102.6 | 94.0 |
| PBV-02-112 | 1-1/2" | 40 | 57.9 | 121.4 | 110.0 | 109.7 |
| PBV-02-2 | 2" | 50 | 71.8 | 139.1 | 131.1 | 128 |

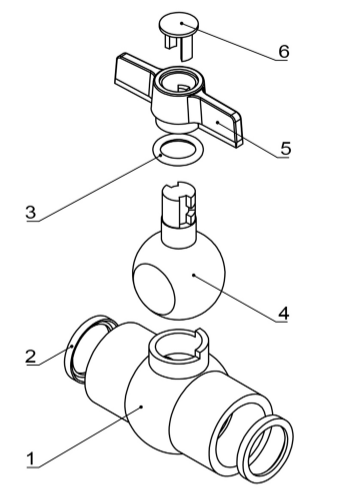

| No. | Name | QTY | |
1 | Body | U-PVC | 1 |
| 2 | Seat Seal | PTE | 2 |
| 3 | Stem O-ring | NBR/EPDM | 1 |
| 4 | Ball | PP | 1 |
| 5 | Handle | ABS/PP/PVC | 1 |
| 6 | Cap | ABS/PP | 1 |
Our Packing List For Your Reference
ITEM:WMH-92110RB
| SIZE | QTY/CTN (PCS) | NW. (KGS) | GW. (KGS) | CARTON SIZE(cm) | CBM (m³) | 20GP' | 40GP' | ||
| LENGTH | WIDTH | HEIGHT | CTNS | CTNS | |||||
1/2" | 180 | 10.60 | 13.10 | 41 | 39 | 26 | 0.042 | 560 | 1200 |
| 3/4" | 120 | 11.30 | 13.80 | 40 | 36 | 30 | 0.043 | 580 | 1160 |
