Air Hose
+
PPR Ball Valve With POM Ball
ITEM:PBV-03
lPPR material
l1/2"~2"
lCNS/JIS/DIN/BS/ANSI/NPT/BSPT Standard
lNormal temperature
lMany colors available for choice
Product Overview

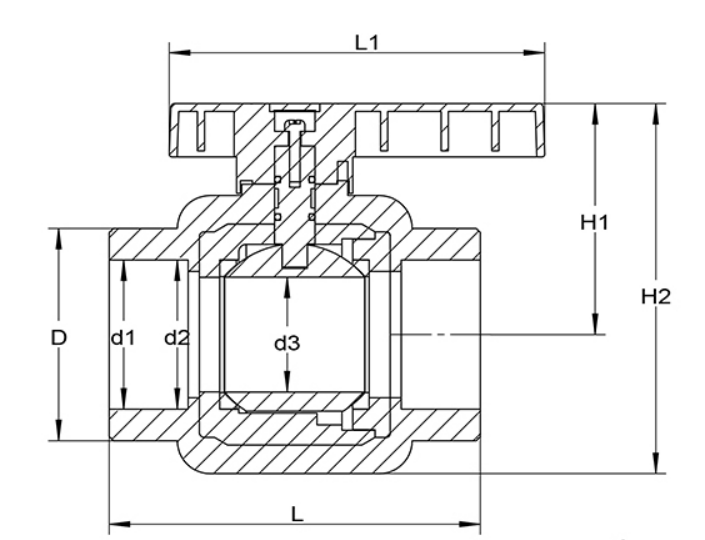

| Item | Size | d3 | L | L1 | H2 |
PBV-03-12 | 1/2" | 28.5 | 73.6 | 81.3 | 69.8 |
| PBV-03-34 | 3/4" | 35.5 | 77.6 | 88.2 | 77.7 |
| PBV-03-1 | 1" | 44.0 | 87.9 | 101.2 | 93.8 |
| PBV-03-114 | 1-1/4" | 52.7 | 104.4 | 121.1 | 104.2 |
| PBV-03-112 | 1-1/2" | 65.8 | 124.4 | 145.8 | 128.0 |
| PBV-03-2 | 2" | 81.5 | 149.3 | 145.8 | 146.5 |
| No. | Name | QTY | |
1 | Body | PPR | 1 |
| 2 | Ball Part1 | PPR | 1 |
| 3 | O-ring | NBR/EPDM | 2 |
| 4 | Stem | Brass | 1 |
| 5 | Handle | ABS/PP/U-PVC | 1 |
| 6 | Ball | POM | 1 |
| 7 | Nut | U-PVC | 2 |
| 8 | Ball Part2 | PPR | 1 |
