PVC Octagonal Ball Valve
ITEM:PBV-04
lUPVC material
l1/2"~2"
lCNS/JIS/DIN/BS/ANSI/NPT/BSPT Standard
lMany colors available for choice
lWater/weak acid/weak base working media
Product Overview

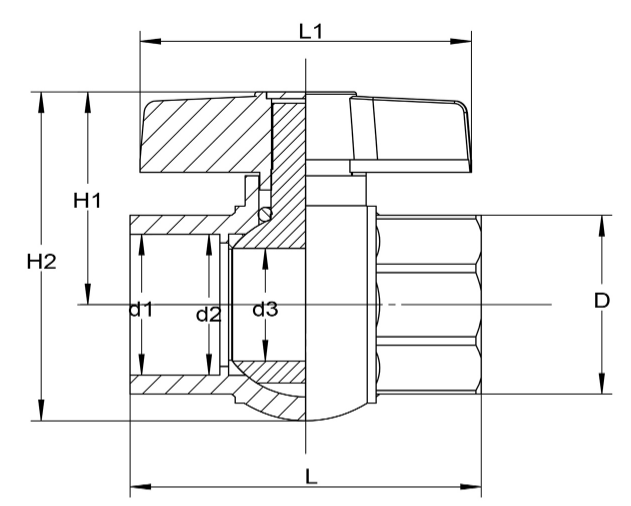

| Item | Size | d3 | D | L | L1 | H2 |
PBV-04-12 | 1/2" | 15 | 26.6 | 70.0 | 69.6 | 60.1 |
| PBV-04-34 | 3/4" | 20 | 33.7 | 84.0 | 76.2 | 72.6 |
| PBV-04-1 | 1" | 25 | 41.1 | 97.3 | 89.7 | 84.6 |
| PBV-04-114 | 1-1/4" | 32 | 50.0 | 106.6 | 102.6 | 93.5 |
| PBV-04-112 | 1-1/2" | 40 | 58.0 | 121.4 | 110.0 | 108.6 |
| PBV-04-2 | 2" | 50 | 70.7 | 138.5 | 131.1 | 127.9 |

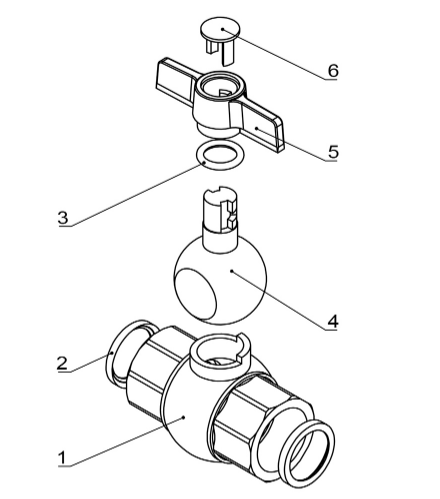

| No. | Name | QTY | |
1 | Body | U-PVC | 1 |
| 2 | Seat Seal | PTE | 2 |
| 3 | Stem O-ring | NBR/EPDM | 1 |
| 4 | Ball | PP | 1 |
| 5 | Handle | ABS/PP/U-PVC | 1 |
| 6 | Cap | ABS/PP | 1 |
